How to use Eucleia TabScan wiScan T6 J2534

Eucleia wiScan T6 is a car diagnostic tool which supports J2534 standard interface and major original manufacturer diagnosis software and function.

Function:

1. J2534 Compatible: Honda HDS, Toyota Techstream, VW ODIS, Volvo VIDA,Jaguar Land rover SDD, Ford/Mazda IDS, GM GDS2

2. Can be used as wireless VCI adapter to connect Tabscan S8/S7W tablet scanner via WiFi to carry out more vehicle diagnostic, coding and programming.


Operating system:
Windows Xp, Windows 7, Windows 8, Windows 10 and follow-up version of the 32 bit or 64 bit operating system.

How to use, connect and update wiScan T6 J2534 VCI?

Step 1: Download driver

1.You need a T6 VCI, OBDII cable, interface cable and a laptop.

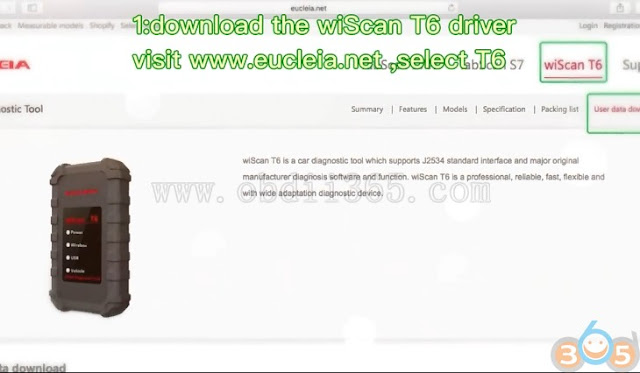

2.Visit official website www.eucleia.net, select wiScan T6

Download the wiScan T6 driver

3. Connect T6 with laptop via interface cable

Step 2: Update firmware

Run T6 firmware upgrade

Step 3: Run diagnostic

Connect wiScan T6 with vehicle via OBDII cable

http://www.obdii365.com

Related video:

How to use wiScan T6 J2534 VCI?

wiScan T6 test on Toyota Techstream software

Eucleia TabScan Reset EPB on VOLVO XC60 2011

Vehicle Information: VOLVO XC60 year 2011


Example: EPB Reset after replacing rear brake block

Step 1: Turn on the ignition switch, select P gear, press the EPB switch to release the handbrake.

Select P gear and release the handbrake


Step 2:  Connect EUCLEIA Tabscan S7W/Tabscan S8 diagnostic scanner with vehicle

Select Service function

Step 3: Choose “EPB Reset”

Step 4: Choose “VOLVO”

Step 5: Choose“XC60”

Step 6: Choose “Replace the rear brake pads”

Step 7: Turn ignition on and engine off, click OK

Step 8: at this point, the brake pump will be retracted, and then the ring of rear wheel brake pump will be heard for a few seconds, waiting for the page to jump before replacing the new brake pad to the car.

Step 9. After the replacement is completed, click "confirm" and the brake pump will be released, and the ring of motor will be heard for a few seconds, waiting for the page to jump and then click "confirm".

Step 10: Click “OK” button and exit the system. Turn off and then turn on the ignition switch and press EPB button. Completed.

Note:

For EPB Reset usually need release the handbrake.

http://www.obdii365.com/

EUCLEIA Tabscan Reset EPB on Audi A8 2011

Vehicle Model: Audi A8 year 2011 3.0 TFSI quattro

Repairing request : After replacing the brake pad, need reset the rear branch pump of brake

1.connect EUCLEIA TabScan S7W or Tabsan S8 diagnostic scanner with car ,select ”Service” - “EPB Reset”

2.Select “Audi” –“A8”

3.Select “A8(D3)”

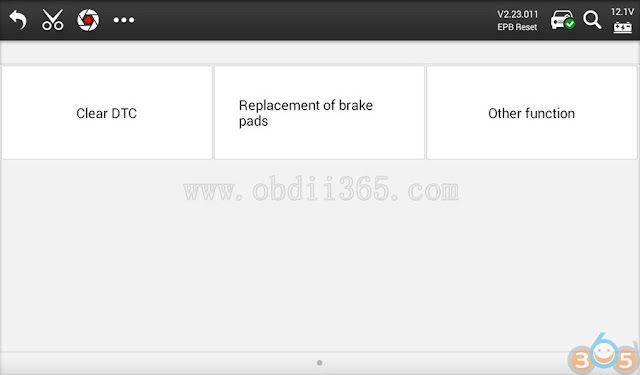

4.Select “Replacement of brake pads”

5.according to notes to release handbrake, then click “Yes”, at this time the rear brake pump motor will be heard for a few seconds to be retracted. After the retraction is completed, install the new brake pad according to the notification, then click “ok”.

6.at this time rear brake pump will ring for few seconds, after the branch pump is released , click ok.

7.all operation completed, exit tabscan system, press electrical handbrake button to make handbrake work, reset EPB completed.

Notes:

Please do remember release the handbrake once reset EPB.

http://www.obdii365.com

Eucleia TabScan Reset EPB Renault Koleos 2010

After exchanging the rear brake pad, need to reset EPB.


1.Put into P gear, press EPB,and release hand brake.

2.Connect with Eucleia tabscan S7W/ tabscan S8 diagnostic scanner and select “Service”-“EPB Reset”

3.Select “RENAULT”- ”Koleos“;

4.Select “Perform”.

5.Confirm tips and Select “OK”.

6.This time can hear the branch pump of rear brake pad is ting for seconds, then show “success”. click OK.

7.Install the new brake pad and click “Release”.

8. This time can hear the branch pump of rear brake pad is ting for seconds, then show “success”. click OK.

9.Operation completed.  Exit software and press EPB button to make hand park working .

http://www.obdii365.com/

Eucleia J2534 VCI wiScan T6 vs. T6 Plus vs. T6 Pro

Tabscan wireless VCI wiScan T6 vs. T6+ vs. T6 Pro J2534 diagnostic tool

Item	Model	wiScan T6	wiScan T6+	wiScan T6 Pro
Connection	Bluetooth	High-speed	High-speed	High-speed
Protocol	ISO & SAE	High-speed	Yes	High-speed
	J2534	Yes	Yes	Yes
	PDU	Yes	Yes	Yes
	RJ45			Yes
	DoIP			Yes
	VOLTAGE Programming	Yes	Yes	Yes
Compatible Vehicles	Honda HDS	Yes	Yes	Yes
	Volvo VIDA	Yes	Yes	Yes
	VW Audi ODIS	Yes	Yes	Yes
	Toyota TIS	Yes	Yes	Yes
	Jaguar Land rover SDD	Yes	Yes	Yes
	Ford Mazda IDS	Yes	Yes	Yes
	BMW ISTA-D/-P	Yes	Yes	Yes
	GM GDS2	Yes	Yes	Yes
	Benz Xentry Passthru	Yes	Yes	Yes
	Jaguar Land rover Pathfinder			Yes
	Porsche PIWIS-2	Developing	Developing	Yes
	Land Rover VIDA DoIP			Yes
	New software	Developing	Developing
Function and other	OEM diagnosis	Yes	Yes	Yes
	OEM Programming	Yes	Yes	Yes
	Update	WiFi by cable	WiFi by cable	WiFi by cable
	Driver compatible	All	Single	All
	Mobile phone app	Yes	Yes	Yes
	Dual-mode	Yes	Yes	Yes
